1, LPG atomizer spray dryer / food spray dryer / industrial spary dryer
2, Liquid or slurry drying processor
3, Easy operation and control
4, Stainless steel
Product Description

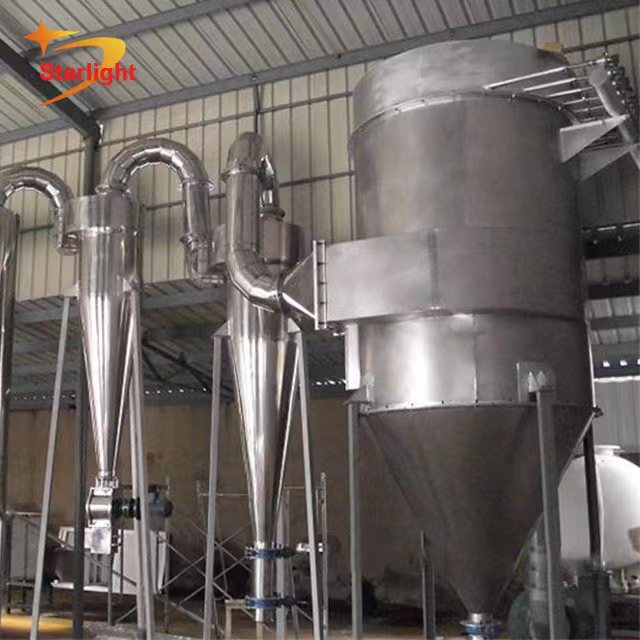

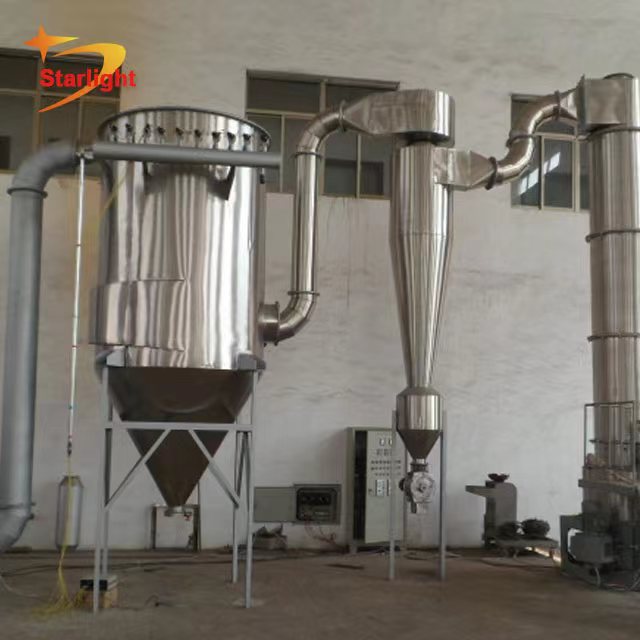

LPG Food Spray Dryer Description
Food Spray dryer is a wide applied process in liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid and pumped paste liquid. Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.
LPG Industrial Spray Dryer Application
It's widely used in foodstuff and chemical industry, such as food flavour, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.
LPG Working Principle of Food Spray Dryer
After filtering and heating, the hot fresh air enter into the air distributor at the top of drying chamber, distributed in spiral way uniformly from up to down. At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to extremely fine mist liquid drop. Through the short time of direct contact with hot air, the moisture evaporated at once, the solid remains to be powder. The dry powder will be discharged continuously from the bottom of drying tower and cyclone collector, the exhaust air will be discharged after cleaning.
LPG Industrial Spray Dryer Technical parameters
project parameter | 5 | 25 | 50 | 150 | 200-2000 |
Inlet temperature（℃） | 140-350automatic control | ||||
Outlet temperature（℃） | 80-90 | ||||
Maximum evaporation of water（kg/h） | 5 | 25 | 50 | 150 | 200-2000 |
Drive type of centrifugal spray head | Compressed air transmission | mechanical drive | |||
Maximum speed（r.p.m） | 25000 | 18000 | 18000 | 15000 | 800-15000 |
Atomizing disc diameter（mm） | 50 | 120 | 120 | 150 | 180-240 |
heat source | electricity | Electricity+Steam | Electricity+steam, fuel oil, gas, hot air stove | ||
Maximum power of electric heating（kw） | 9 | 36 | 72 | 99 | |
Overall dimensions（m） | 1.8×0.93×2.2 | 3×2.7×4.26 | 3.5×3.5×4.8 | 5.5×4×7 | Determine based on actual situation |
Dry powder recycling（%） | ≥95 | ||||
