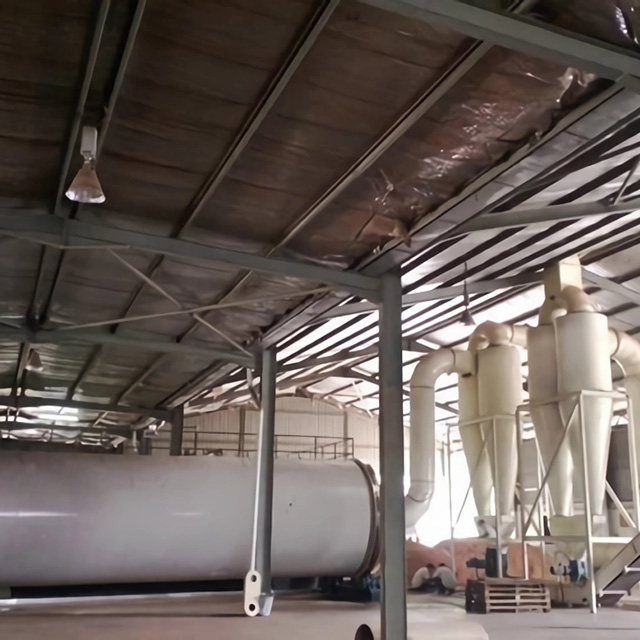

Jingjiang Xingguang three drum dryer is made up of three concentric cylinders with different diameters according to certain mathematical relationship and structural form, which are embedded and combined with the introduction of German advanced technology. Widely used in biomass, non-metallic minerals, chemical industry, environmental protection, feed, agriculture, forestry and other industries. It is specialized in the drying of sawdust, sawdust, straw, shaving, bark, wood powder, rice husk, forage, oil palm silk, plant fiber, brewer's grains, cassava dregs, Ginkgo biloba, marigold, Chinese herbal medicine, alfalfa powder, corncob, vegetable powder, various crystals, non-metallic mineral powder, inorganic fertilizer and other dregs. The hot air can be reused according to the user's conditions, and the thermal efficiency is as high as 80%, which is significantly higher than that of similar drying equipment.
High temperature hot air enters the central cylinder together with wet materials, then rotates, flows along the middle annular channel, and then rotates again to the outlet of the drying cylinder through the outer annular channel. The materials in each channel are transported under high temperature air pressure and dried in suspension. There are also blades in the channel to carry the scattered materials. The small particles almost pass through the dryer at the same speed as the air flow. The wet and heavy materials in the middle and outer annular channels fall down from the material flow, but due to the rotation of the drying cylinder, they are picked up again by the blades, return to the air flow, and constantly come out of the surrounding of the drying medium.
Under the action of this movement, the smaller fragments can be dried quickly and discharged from the drying cylinder quickly. The wet bulk materials will stay in the dryer for a long time. In this way, the drying of materials will be more uniform. When the hot air and the material flow together, there will be a strong heat and mass exchange. At the outlet of the drying cylinder, the temperature of the drying medium will drop to 80-120 degrees
Main features of three drum dryer:
The heat efficiency of self insulation of the cylinder is more than 70% (the dry heat efficiency of the traditional single cylinder is only 30%).
The tail drive is adopted to make the transmission more stable and reliable; the rotation of the supporting wheel is changed completely and the sliding often affects the production.
Compared with single drum dryer, the land occupation is reduced by about 50%, the investment in civil engineering is reduced by about 50%, and the power consumption is reduced by 60%.
The results show that the combination distribution of various kinds of circumferential lifting materials can effectively control the drying time and the drying effect is good.
According to the user requirements, the final water index can be easily controlled.
The variable frequency speed control material flow can easily control the final water index according to the needs of users.
The whole system is equipped with material blocking alarm and riot prevention device.
Based on the three drum dryer, combined with many years of industry experience and engineering examples, a variety of special dryers can be provided. Such as sawdust dryer, sawdust dryer, cassava residue dryer, shaving dryer, wood powder dryer, grass dryer, fiber dryer, rice husk dryer, straw dryer, beer trough dryer, marigold dryer, grass dryer, alfalfa dryer, oil palm fiber dryer, mineral powder dryer, etc.
